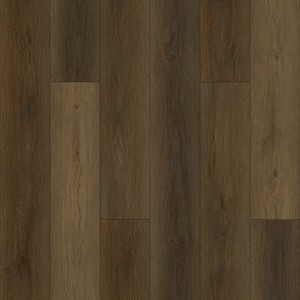

Affordable & Easy Maintenance Rigid Core vinyl Flooring
Description:
Item：TJ81007XL-BR005
Thickness: 4.0mm~8.0mm
Wear Layer: 0.2mm~0.7mm
Underlay（Optional）：EVA/ IXPE, 1.0mm~2.0mm
Size：7.25’’ X 48’’/ 6’’X48’’/ 9’’X48’’/ 7’’X36’’/ 6’’X36’’/ 9’’X36’’/ Customization
Rigid core vinyl flooring with Uniclic locking system provides glue-less flooring installation. Not only its cost efficiency raw material and production procedure helps to reduce the price tag, the easy DIY installation helps to save a lots of labor cost and time.
SPC rigid core Vinyl flooring is an economically affordable product to average households. It is mainly a composition of Calcium carbonate and Polyvinyl Chloride, which is abundant in our natural worlds. Besides, it is recyclable and eco-friendly, not like hardwood, it doesn’t consume much natural resources. The average cost of SPC rigid core vinyl flooring is much less than hardwood specially those scares kinds.
It is widely applied in public areas such as school class rooms, Lecture Halls, libraries, movie theaters and etc as it is easy -going with the budget. You may just pay 1/2~ 1/3 of same budget as hardwood floorings.
Besides, thanks to its rigid core and wear layer, it features Easy Maintenance in any household or public places. You save a lot of labors and time in your daily housekeeping and environmental cleaning.
You will be happy to enjoy your life and work with our Affordable & Easy Maintenance Rigid Core Flooring beneath your feet.
|
Specification |
|
|
Surface Texture |
Wood Texture |
|
Overall Thickness |
4mm |
|
Underlay（Optional） |
IXPE/EVA(1mm/1.5mm) |
|
Wear Layer |
0.2mm. (8 Mil.) |
|
Width |
7.25” (184mm.) |
|
Length |
48” (1220mm.) |
|
Finish |
UV Coating |
|
Locking System |
|
|
Application |
Commercial & Residential |
Technical Data：
| SPC RIGID-CORE PLANK TECHNICAL DATA | ||
|
Technical Information |
Test Method |
Results |
|
Dimensional |
EN427 & |
Pass |
|
Thickness in total |
EN428 & |
Pass |
|
Thickness of wear layers |
EN429 & |
Pass |
|
Dimensional Stability |
IOS 23999:2018 & ASTM F2199-18 |
Manufacturing Direction ≤0.02% (82oC @ 6hrs) |
|
Across Manufacture Direction ≤0.03% (82oC @ 6hrs) |
||
|
Curling (mm) |
IOS 23999:2018 & ASTM F2199-18 |
Value 0.16mm(82oC @ 6hrs) |
|
Peel Strength (N/25mm) |
ASTM D903-98(2017) |
Manufacturing Direction 62 (Average) |
|
Across Manufacture Direction 63 (Average) |
||
|
Static Load |
ASTM F970-17 |
Residual Indentation:0.01mm |
|
Residual Indentation |
ASTM F1914-17 |
Pass |
|
Scratch Resistance |
ISO 1518-1:2011 |
No penetrated the coating at the load of 20N |
|
Locking Strength(kN/m) |
ISO 24334:2014 |
Manufacturing Direction 4.9 kN/m |
|
Across Manufacture Direction 3.1 kN/m |
||
|
Colour Fastness to Light |
ISO 4892-3:2016 Cycle 1 & ISO105–A05:1993/Cor.2:2005& ASTM D2244-16 |
≥ 6 |
|
Reaction to fire |
BS EN14041:2018 Clause 4.1 & EN 13501-1:2018 |
Bfl-S1 |
|
ASTM E648-17a |
Class 1 |
|
|
ASTM E 84-18b |
Class A |
|
|
VOC Emissions |
BS EN 14041:2018 |
ND - Pass |
|
ROHS/Heavy Metal |
EN 71-3:2013+A3:2018 |
ND - Pass |
|
Reach |
No 1907/2006 REACH |
ND - Pass |
|
Formaldehyde emission |
BS EN14041:2018 |
Class: E 1 |
|
Phthalate Test |
BS EN 14041:2018 |
ND - Pass |
|
PCP |
BS EN 14041:2018 |
ND - Pass |
|
Migration of Certain Elements |
EN 71 – 3:2013 |
ND - Pass |
Packing Infornation：
|
Packing Information(4.0mm) |
|
|
Pcs/ctn |
12 |
|
Weight(KG)/ctn |
22 |
|
Ctns/pallet |
60 |
|
Plt/20’FCL |
18 |
|
Sqm/20’FCL |
3000 |
|
Weight(KG)/G.W |
24500 |
