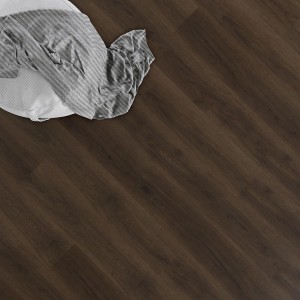

Dark Brown Oak Grain SPC Click Flooring
This oak wood grain SPC click flooring is visually elegant, low-cost, easy-to-install, easy-to-maintain. SPC click flooring continues to be one of the least expensive and easiest to install and maintain flooring options applied to residential and commercial. Affordable SPC click flooring which comes in a variety of colors and designs has become a popular choice among homeowners.
With a large proportion of limestone powder as composition, the vinyl plank or tile has an ultra-tough core, therefore, it won’t swell when confronted with moisture, and won’t expand or contract much in case of temperature change. Therefore, SPC click flooring has been accepted with more contractors, wholesalers, and retailers worldwide. Traditional SPC has only oak wood looks, now more options of realistic beech grains appear in the market, among which customers are always able to find what they like.
Specification |
|
Surface Texture |
Wood Texture |
Overall Thickness |
4mm |
Underlay(Optional) |
IXPE/EVA(1mm/1.5mm) |
Wear Layer |
0.2mm. (8 Mil.) |
Width |
7.25” (184mm.) |
Length |
48” (1220mm.) |
Finish |
UV Coating |
Locking System |
|
Application |
Commercial & Residential |
Technical Data:
SPC RIGID-CORE PLANK TECHNICAL DATA | ||
Technical Information |
Test Method |
Results |
Dimensional |
EN427 & |
Pass |
Thickness in total |
EN428 & |
Pass |
Thickness of wear layers |
EN429 & |
Pass |
Dimensional Stability |
IOS 23999:2018 & ASTM F2199-18 |
Manufacturing Direction ≤0.02% (82oC @ 6hrs) |
Across Manufacture Direction ≤0.03% (82oC @ 6hrs) |
||
Curling (mm) |
IOS 23999:2018 & ASTM F2199-18 |
Value 0.16mm(82oC @ 6hrs) |
Peel Strength (N/25mm) |
ASTM D903-98(2017) |
Manufacturing Direction 62 (Average) |
Across Manufacture Direction 63 (Average) |
||
Static Load |
ASTM F970-17 |
Residual Indentation:0.01mm |
Residual Indentation |
ASTM F1914-17 |
Pass |
Scratch Resistance |
ISO 1518-1:2011 |
No penetrated the coating at the load of 20N |
Locking Strength(kN/m) |
ISO 24334:2014 |
Manufacturing Direction 4.9 kN/m |
Across Manufacture Direction 3.1 kN/m |
||
Colour Fastness to Light |
ISO 4892-3:2016 Cycle 1 & ISO105–A05:1993/Cor.2:2005& ASTM D2244-16 |
≥ 6 |
Reaction to fire |
BS EN14041:2018 Clause 4.1 & EN 13501-1:2018 |
Bfl-S1 |
ASTM E648-17a |
Class 1 |
|
ASTM E 84-18b |
Class A |
|
VOC Emissions |
BS EN 14041:2018 |
ND - Pass |
ROHS/Heavy Metal |
EN 71-3:2013+A3:2018 |
ND - Pass |
Reach |
No 1907/2006 REACH |
ND - Pass |
Formaldehyde emission |
BS EN14041:2018 |
Class: E 1 |
Phthalate Test |
BS EN 14041:2018 |
ND - Pass |
PCP |
BS EN 14041:2018 |
ND - Pass |
Migration of Certain Elements |
EN 71 – 3:2013 |
ND - Pass |
Packing Infornation:
Packing Information(4.0mm) |
|
Pcs/ctn |
12 |
Weight(KG)/ctn |
22 |
Ctns/pallet |
60 |
Plt/20’FCL |
18 |
Sqm/20’FCL |
3000 |
Weight(KG)/G.W |
24500 |
