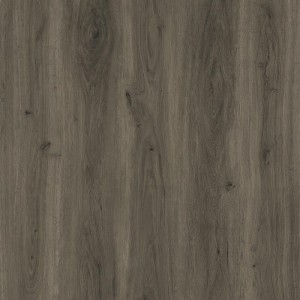

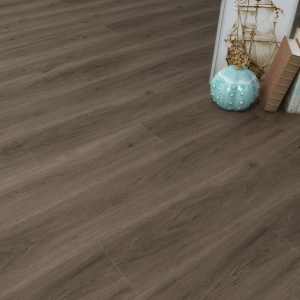

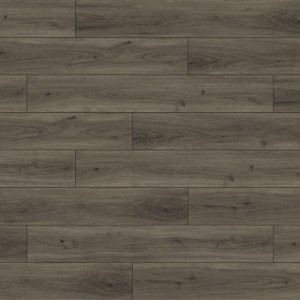

Rigid Core Click Floor with Real Wood Feel
Description:
Item：JSD24
Thickness: 4.0mm~8.0mm
Wear Layer: 0.2mm~0.7mm
Underlay(Optional): EVA/ IXPE, 1.0mm~2.0mm
Size：7.25’’ X 48’’/ 6’’X48’’/ 9’’X48’’/ 7’’X36’’/ 6’’X36’’/ 9’’X36’’/ Customization
SPC Click floor or rigid core click floor has evolved into sophisticated products that high-end clients are choosing over wood and tile, because the new vinyl floor looks so similar to the natural surfaces they mimic. The SPC vinyl floor looks extremely like the natural wood, but with the similar performance as tiles. Also the reason of the lower cost，makes it more and more popular in flooring application.
Good vision of your home is the most important thing for every person, floor covering as the large and main part of our home apparently needs pay more attention on the look as well as function. When it comes to look, nowadays the wood grain always be the preference of millions of thousands of customers for their flooring. TopJoy SPC flooring wood selection is selected with the most popular texture and grain, uses the advanced embossing process gives our flooring a truly real wood feel, when you see it, you touch it and you feel it, almost like a real wood. But it owns some function that hardwood flooring doesn’t have, which is necessarily need by customer. SPC flooring can 100% used in water for its absolutely waterproof feature, SPC flooring can be easily maintained in your daily life for its anti-microbial, anti-bacteria characteristic, it is easy to clean. Besides, as for its rigid core structure and the UV surface protective, it is intensity and excellent impact resistance, that means SPC floor can’t be easily damaged or scratched in your daily life. As a popular multiple-function flooring, SPC Rigid Core Click Floor, must be giving you a excellent experience on the flooring.
|
Specification |
|
|
Surface Texture |
Wood Texture |
|
Overall Thickness |
3.5mm |
|
Underlay(Optional) |
IXPE/EVA(1mm/1.5mm) |
|
Wear Layer |
0.2mm. (8 Mil.) |
|
Width |
6” (152mm.) |
|
Length |
36” (914mm.) |
|
Finish |
UV Coating |
|
Click |
 |
|
Application |
Commercial & Residential |
|
SPC RIGID-CORE PLANK TECHNICAL DATA |
||
|
Technical Information |
Test Method |
Results |
|
Dimensional |
EN427 & |
Pass |
|
Thickness in total |
EN428 & |
Pass |
|
Thickness of wear layers |
EN429 & |
Pass |
|
Dimensional Stability |
IOS 23999:2018 & ASTM F2199-18 |
Manufacturing Direction ≤0.02% (82oC @ 6hrs) |
|
Across Manufacture Direction ≤0.03% (82oC @ 6hrs) |
||
|
Curling (mm) |
IOS 23999:2018 & ASTM F2199-18 |
Value 0.16mm(82oC @ 6hrs) |
|
Peel Strength (N/25mm) |
ASTM D903-98(2017) |
Manufacturing Direction 62 (Average) |
|
Across Manufacture Direction 63 (Average) |
||
|
Static Load |
ASTM F970-17 |
Residual Indentation:0.01mm |
|
Residual Indentation |
ASTM F1914-17 |
Pass |
|
Scratch Resistance |
ISO 1518-1:2011 |
No penetrated the coating at the load of 20N |
|
Locking Strength(kN/m) |
ISO 24334:2014 |
Manufacturing Direction 4.9 kN/m |
|
Across Manufacture Direction 3.1 kN/m |
||
|
Colour Fastness to Light |
ISO 4892-3:2016 Cycle 1 & ISO105–A05:1993/Cor.2:2005& ASTM D2244-16 |
≥ 6 |
|
Reaction to fire |
BS EN14041:2018 Clause 4.1 & EN 13501-1:2018 |
Bfl-S1 |
|
ASTM E648-17a |
Class 1 |
|
|
ASTM E 84-18b |
Class A |
|
|
VOC Emissions |
BS EN 14041:2018 |
ND – Pass |
|
ROHS/Heavy Metal |
EN 71-3:2013+A3:2018 |
ND – Pass |
|
Reach |
No 1907/2006 REACH |
ND – Pass |
|
Formaldehyde emission |
BS EN14041:2018 |
Class: E 1 |
|
Phthalate Test |
BS EN 14041:2018 |
ND – Pass |
|
PCP |
BS EN 14041:2018 |
ND – Pass |
|
Migration of Certain Elements |
EN 71 – 3:2013 |
ND – Pass |
|
Packing Information(4.0mm) |
|
|
Pcs/ctn |
12 |
|
Weight(KG)/ctn |
22 |
|
Ctns/pallet |
60 |
|
Plt/20’FCL |
18 |
|
Sqm/20’FCL |
3000 |
|
Weight(KG)/G.W |
24500 |
