Rigid Core SPC Vinyl Click Flooring
Description:
Item：TJ8866L-BR05
Thickness: 4.0mm~8.0mm
Wear Layer: 0.2mm~0.7mm
Underlay（Optional）：EVA/ IXPE, 1.0mm~2.0mm
Size：7.25’’ X 48’’/ 6’’X48’’/ 9’’X48’’/ 7’’X36’’/ 6’’X36’’/ 9’’X36’’/ Customization
Rigid core vinyl flooring have come a long way since their humble beginnings as a less expensive alternative to traditional hardwood floors. One thing that has not changed is the affordability – but the quality is through the roof! Our vinyl floors have a real wood look and texture that is easy to install and even easier to maintain.

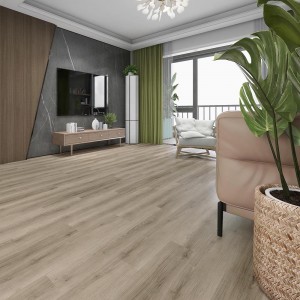

Made of high-quality material, environmental protection and safety. TopJoy wood grain floor, TJ8866L-BR05, brings a more comfortable feeling to your home through its natural texture and color.
Choosing SPC flooring can make a huge difference in our daily life:
1. Waterproof. Suitable for all room of your house.
2. Ease of installation : Click system make it very easy to install. DIY is no problem at all.
3. Design : Thousands of colors are available.
4. Safety : Free phthalates and Free formaldehyde
5. Fireproof: Class Bf1 (EN 13501) & Class A (ASTM E84)
If you are looking for a durable, long-lasting & waterproof floor that enhances the look of any space and won't break the bank, send the inquiry NOW
|
Specification |
|
|
Surface Texture |
Wood Texture |
|
Overall Thickness |
4mm |
|
Underlay（Optional） |
IXPE/EVA(1mm/1.5mm) |
|
Wear Layer |
0.2mm. (8 Mil.) |
|
Width |
7.25” (184mm.) |
|
Length |
48” (1220mm.) |
|
Finish |
UV Coating |
|
Locking System |
|
|
Application |
Commercial & Residential |
Technical Data：
| SPC RIGID-CORE PLANK TECHNICAL DATA | ||
|
Technical Information |
Test Method |
Results |
|
Dimensional |
EN427 & |
Pass |
|
Thickness in total |
EN428 & |
Pass |
|
Thickness of wear layers |
EN429 & |
Pass |
|
Dimensional Stability |
IOS 23999:2018 & ASTM F2199-18 |
Manufacturing Direction ≤0.02% (82oC @ 6hrs) |
|
Across Manufacture Direction ≤0.03% (82oC @ 6hrs) |
||
|
Curling (mm) |
IOS 23999:2018 & ASTM F2199-18 |
Value 0.16mm(82oC @ 6hrs) |
|
Peel Strength (N/25mm) |
ASTM D903-98(2017) |
Manufacturing Direction 62 (Average) |
|
Across Manufacture Direction 63 (Average) |
||
|
Static Load |
ASTM F970-17 |
Residual Indentation:0.01mm |
|
Residual Indentation |
ASTM F1914-17 |
Pass |
|
Scratch Resistance |
ISO 1518-1:2011 |
No penetrated the coating at the load of 20N |
|
Locking Strength(kN/m) |
ISO 24334:2014 |
Manufacturing Direction 4.9 kN/m |
|
Across Manufacture Direction 3.1 kN/m |
||
|
Colour Fastness to Light |
ISO 4892-3:2016 Cycle 1 & ISO105–A05:1993/Cor.2:2005& ASTM D2244-16 |
≥ 6 |
|
Reaction to fire |
BS EN14041:2018 Clause 4.1 & EN 13501-1:2018 |
Bfl-S1 |
|
ASTM E648-17a |
Class 1 |
|
|
ASTM E 84-18b |
Class A |
|
|
VOC Emissions |
BS EN 14041:2018 |
ND - Pass |
|
ROHS/Heavy Metal |
EN 71-3:2013+A3:2018 |
ND - Pass |
|
Reach |
No 1907/2006 REACH |
ND - Pass |
|
Formaldehyde emission |
BS EN14041:2018 |
Class: E 1 |
|
Phthalate Test |
BS EN 14041:2018 |
ND - Pass |
|
PCP |
BS EN 14041:2018 |
ND - Pass |
|
Migration of Certain Elements |
EN 71 – 3:2013 |
ND - Pass |
Packing Infornation：
|
Packing Information(4.0mm) |
|
|
Pcs/ctn |
12 |
|
Weight(KG)/ctn |
22 |
|
Ctns/pallet |
60 |
|
Plt/20’FCL |
18 |
|
Sqm/20’FCL |
3000 |
|
Weight(KG)/G.W |
24500 |
