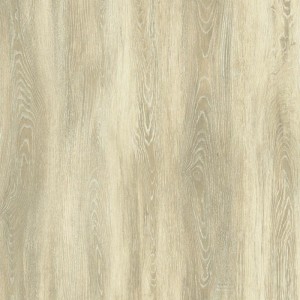

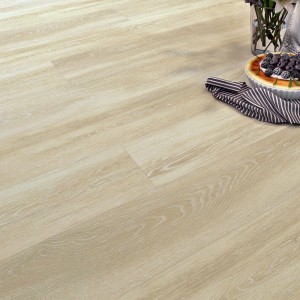

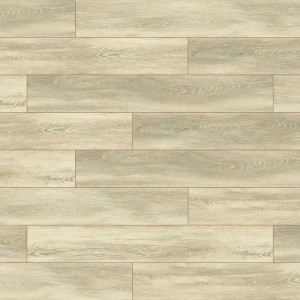

Rigid Plank Hybrid Flooring
Description:
Item：JSD09
Thickness: 4.0mm~8.0mm
Wear Layer: 0.2mm~0.7mm
Underlay(Optional): EVA/ IXPE, 1.0mm~2.0mm
Size：7.25’’ X 48’’/ 6’’X48’’/ 9’’X48’’/ 7’’X36’’/ 6’’X36’’/ 9’’X36’’/ Customization
Rigid Plank is a trouble free flooring solution that incorporates our proprietary Core Limestone 100% water proof structure, which is resistant to fluctuation of harsh climate. Rigid Plank is a perfect solution for your modern lifestyle.
Whether you like light colors or dark colors, the Rigid Plank Hybrid Flooring got you covered. Rigid Plank is a trouble free flooring solution that incorporates our proprietary Core Limestone 100% water proof structure, which is resistant to fluctuation of harsh climate. Our wide widths and attached underlayment provides enhanced sound control. And Rigid Plank is very easy to clean. In most cases, a Rigid Plank floor will not have any visible seams for dirt or debris to lodge into. Rigid Plank is hypoallergenic, and does not trap dust or other allergens like carpet tends to do. Rigid Plank is a perfect solution for your modern lifestyle.
|
Specification |
|
|
Surface Texture |
Wood Texture |
|
Overall Thickness |
7mm |
|
Underlay(Optional) |
IXPE/EVA(1mm/1.5mm) |
|
Wear Layer |
0.7mm. (28 Mil.) |
|
Width |
6” (152mm.) |
|
Length |
48” (1220mm.) |
|
Finish |
UV Coating |
|
Click |
 |
|
Application |
Commercial & Residential |
|
SPC RIGID-CORE PLANK TECHNICAL DATA |
||
|
Technical Information |
Test Method |
Results |
|
Dimensional |
EN427 & |
Pass |
|
Thickness in total |
EN428 & |
Pass |
|
Thickness of wear layers |
EN429 & |
Pass |
|
Dimensional Stability |
IOS 23999:2018 & ASTM F2199-18 |
Manufacturing Direction ≤0.02% (82oC @ 6hrs) |
|
Across Manufacture Direction ≤0.03% (82oC @ 6hrs) |
||
|
Curling (mm) |
IOS 23999:2018 & ASTM F2199-18 |
Value 0.16mm(82oC @ 6hrs) |
|
Peel Strength (N/25mm) |
ASTM D903-98(2017) |
Manufacturing Direction 62 (Average) |
|
Across Manufacture Direction 63 (Average) |
||
|
Static Load |
ASTM F970-17 |
Residual Indentation:0.01mm |
|
Residual Indentation |
ASTM F1914-17 |
Pass |
|
Scratch Resistance |
ISO 1518-1:2011 |
No penetrated the coating at the load of 20N |
|
Locking Strength(kN/m) |
ISO 24334:2014 |
Manufacturing Direction 4.9 kN/m |
|
Across Manufacture Direction 3.1 kN/m |
||
|
Colour Fastness to Light |
ISO 4892-3:2016 Cycle 1 & ISO105–A05:1993/Cor.2:2005& ASTM D2244-16 |
≥ 6 |
|
Reaction to fire |
BS EN14041:2018 Clause 4.1 & EN 13501-1:2018 |
Bfl-S1 |
|
ASTM E648-17a |
Class 1 |
|
|
ASTM E 84-18b |
Class A |
|
|
VOC Emissions |
BS EN 14041:2018 |
ND – Pass |
|
ROHS/Heavy Metal |
EN 71-3:2013+A3:2018 |
ND – Pass |
|
Reach |
No 1907/2006 REACH |
ND – Pass |
|
Formaldehyde emission |
BS EN14041:2018 |
Class: E 1 |
|
Phthalate Test |
BS EN 14041:2018 |
ND – Pass |
|
PCP |
BS EN 14041:2018 |
ND – Pass |
|
Migration of Certain Elements |
EN 71 – 3:2013 |
ND – Pass |
|
Packing Information(4.0mm) |
|
|
Pcs/ctn |
12 |
|
Weight(KG)/ctn |
22 |
|
Ctns/pallet |
60 |
|
Plt/20’FCL |
18 |
|
Sqm/20’FCL |
3000 |
|
Weight(KG)/G.W |
24500 |
