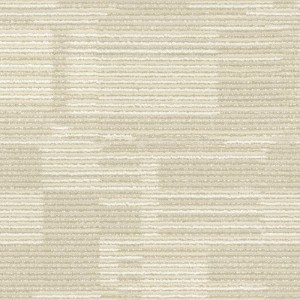

Waterproof Engineered Vinyl Flooring with Carpet Pattern
Description:
Item：984-07s
Thickness: 4.0mm~8.0mm
Wear Layer: 0.2mm~0.7mm
Underlay(Optional): EVA/ IXPE, 1.0mm~2.0mm
Size：12” X 24”/ 12” X 12”/ Customization
Want to enjoy the carpet design but waterproof and easy to clean? Engineered vinyl flooring with carpet flooring will be a great option for the room. Any room in your house will be OK.
Similar to WPC vinyl flooring, an SPC vinyl is an engineered luxury vinyl that combines limestone and stabilizers to create an extremely durable core. But SPC engineered vinyl floor is 100% waterproof and better performance on stability, dent resistance and structure, which means it can be installed in kitchens, bathrooms, laundry rooms, and restaurants without worry!
If you want like the carpet style but tired of the endless maintain, this rigid core vinyl flooring with carpet pattern, 984-07s, will be a good choice. It can have a variety of looks, textures, and styles. Its rigid core makes is very easy to maintain and clean. Only regular sweeping and mopping will be OK.
Besides, SPC vinyl flooring has a click-lock installation system. It can be installed with a tongue and groove. No glues or extra tools are required!
|
Specification |
|
|
Surface Texture |
Wood Texture |
|
Overall Thickness |
4mm |
|
Underlay(Optional) |
IXPE/EVA(1mm/1.5mm) |
|
Wear Layer |
0.3mm. (12 Mil.) |
|
Width |
12” (305mm.) |
|
Length |
24” (610mm.) |
|
Finish |
UV Coating |
|
Click |
 |
|
Application |
Commercial & Residential |
|
SPC RIGID-CORE PLANK TECHNICAL DATA |
||
|
Technical Information |
Test Method |
Results |
|
Dimensional |
EN427 & |
Pass |
|
Thickness in total |
EN428 & |
Pass |
|
Thickness of wear layers |
EN429 & |
Pass |
|
Dimensional Stability |
IOS 23999:2018 & ASTM F2199-18 |
Manufacturing Direction ≤0.02% (82oC @ 6hrs) |
|
Across Manufacture Direction ≤0.03% (82oC @ 6hrs) |
||
|
Curling (mm) |
IOS 23999:2018 & ASTM F2199-18 |
Value 0.16mm(82oC @ 6hrs) |
|
Peel Strength (N/25mm) |
ASTM D903-98(2017) |
Manufacturing Direction 62 (Average) |
|
Across Manufacture Direction 63 (Average) |
||
|
Static Load |
ASTM F970-17 |
Residual Indentation:0.01mm |
|
Residual Indentation |
ASTM F1914-17 |
Pass |
|
Scratch Resistance |
ISO 1518-1:2011 |
No penetrated the coating at the load of 20N |
|
Locking Strength(kN/m) |
ISO 24334:2014 |
Manufacturing Direction 4.9 kN/m |
|
Across Manufacture Direction 3.1 kN/m |
||
|
Colour Fastness to Light |
ISO 4892-3:2016 Cycle 1 & ISO105–A05:1993/Cor.2:2005& ASTM D2244-16 |
≥ 6 |
|
Reaction to fire |
BS EN14041:2018 Clause 4.1 & EN 13501-1:2018 |
Bfl-S1 |
|
ASTM E648-17a |
Class 1 |
|
|
ASTM E 84-18b |
Class A |
|
|
VOC Emissions |
BS EN 14041:2018 |
ND – Pass |
|
ROHS/Heavy Metal |
EN 71-3:2013+A3:2018 |
ND – Pass |
|
Reach |
No 1907/2006 REACH |
ND – Pass |
|
Formaldehyde emission |
BS EN14041:2018 |
Class: E 1 |
|
Phthalate Test |
BS EN 14041:2018 |
ND – Pass |
|
PCP |
BS EN 14041:2018 |
ND – Pass |
|
Migration of Certain Elements |
EN 71 – 3:2013 |
ND – Pass |
|
Packing Information(4.0mm) |
|
|
Pcs/ctn |
12 |
|
Weight(KG)/ctn |
22 |
|
Ctns/pallet |
60 |
|
Plt/20’FCL |
18 |
|
Sqm/20’FCL |
3000 |
|
Weight(KG)/G.W |
24500 |
