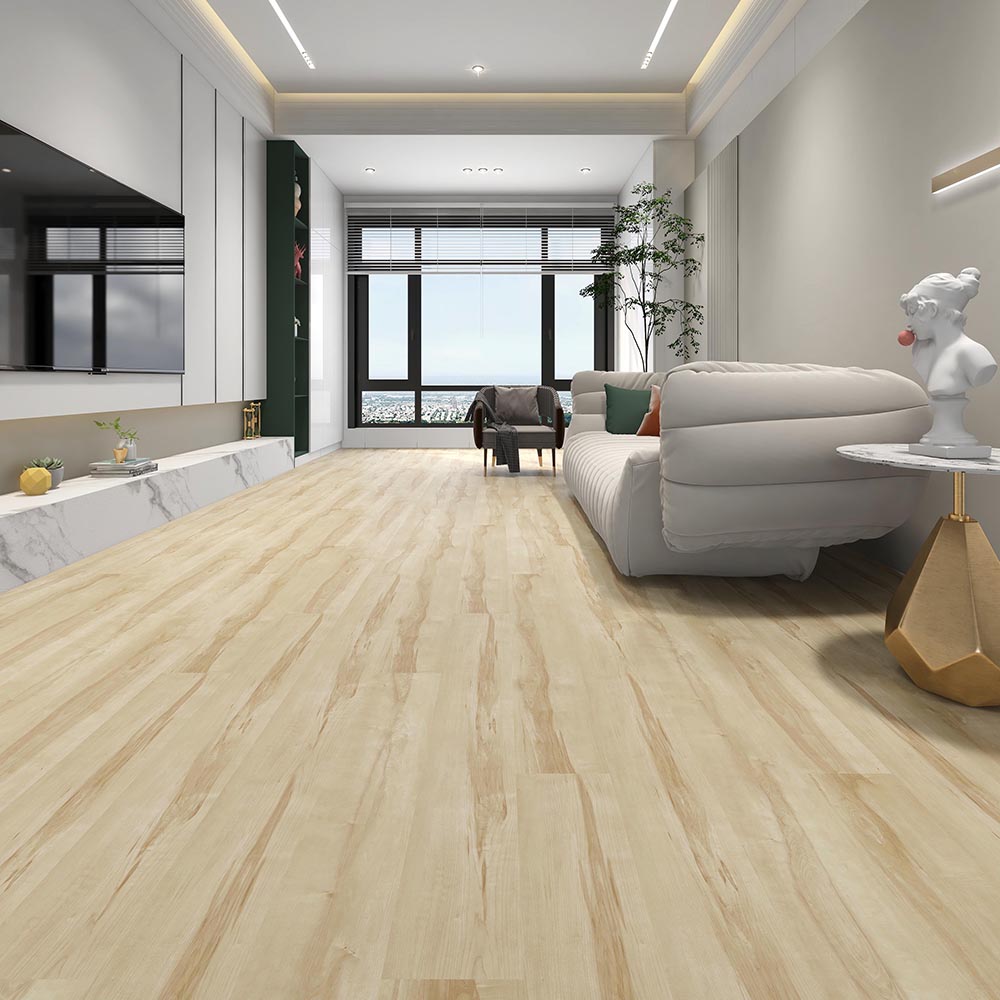

Waterproof Rigid Core Vinyl Click Flooring
Description:
Item：TJ11301-KB1
Thickness: 4.0mm~8.0mm
Wear Layer: 0.2mm~0.7mm
Underlay（Optional）：EVA/ IXPE, 1.0mm~2.0mm
Size：7.25’’ X 48’’/ 6’’X48’’/ 9’’X48’’/ 7’’X36’’/ 6’’X36’’/ 9’’X36’’/ Customization
Combined striking and realistic wooden styles, we create a dramatic look that’s perfect for any room. Rigid Core Vinyl Flooring was built to maintain its beauty – even under high traffic, high moisture and high impact.
For this wooden pattern SPC flooring, TJ11301-KB1, thickness can be 4.0/5.0/6.0 mm or customized. Though it’s not very thin, it’s quite tough compare with the same thickness of other kinds of flooring, so it feels more stable and cushioned when walking on it.
With a 100% waterproof, incredibly dense core, SPC flooring can withstand the demands of your daily routine. Install it in any room, even kitchens, bathrooms, mudrooms and basements. When exposed to water our planks will not swell, buckle or lose integrity.
Maintenance is not a problem at all, durable wear layer and UV treatment on the top make it very easy to keep clean. Regular vacuuming or sweeping and occasional mopping will be OK.
|
Specification |
|
|
Surface Texture |
Wood Texture |
|
Overall Thickness |
4mm |
|
Underlay（Optional） |
IXPE/EVA(1mm/1.5mm) |
|
Wear Layer |
0.2mm. (8 Mil.) |
|
Width |
7.25” (184mm.) |
|
Length |
48” (1220mm.) |
|
Finish |
UV Coating |
|
Locking System |
|
|
Application |
Commercial & Residential |
Technical Data：
| SPC RIGID-CORE PLANK TECHNICAL DATA | ||
|
Technical Information |
Test Method |
Results |
|
Dimensional |
EN427 & |
Pass |
|
Thickness in total |
EN428 & |
Pass |
|
Thickness of wear layers |
EN429 & |
Pass |
|
Dimensional Stability |
IOS 23999:2018 & ASTM F2199-18 |
Manufacturing Direction ≤0.02% (82oC @ 6hrs) |
|
Across Manufacture Direction ≤0.03% (82oC @ 6hrs) |
||
|
Curling (mm) |
IOS 23999:2018 & ASTM F2199-18 |
Value 0.16mm(82oC @ 6hrs) |
|
Peel Strength (N/25mm) |
ASTM D903-98(2017) |
Manufacturing Direction 62 (Average) |
|
Across Manufacture Direction 63 (Average) |
||
|
Static Load |
ASTM F970-17 |
Residual Indentation:0.01mm |
|
Residual Indentation |
ASTM F1914-17 |
Pass |
|
Scratch Resistance |
ISO 1518-1:2011 |
No penetrated the coating at the load of 20N |
|
Locking Strength(kN/m) |
ISO 24334:2014 |
Manufacturing Direction 4.9 kN/m |
|
Across Manufacture Direction 3.1 kN/m |
||
|
Colour Fastness to Light |
ISO 4892-3:2016 Cycle 1 & ISO105–A05:1993/Cor.2:2005& ASTM D2244-16 |
≥ 6 |
|
Reaction to fire |
BS EN14041:2018 Clause 4.1 & EN 13501-1:2018 |
Bfl-S1 |
|
ASTM E648-17a |
Class 1 |
|
|
ASTM E 84-18b |
Class A |
|
|
VOC Emissions |
BS EN 14041:2018 |
ND - Pass |
|
ROHS/Heavy Metal |
EN 71-3:2013+A3:2018 |
ND - Pass |
|
Reach |
No 1907/2006 REACH |
ND - Pass |
|
Formaldehyde emission |
BS EN14041:2018 |
Class: E 1 |
|
Phthalate Test |
BS EN 14041:2018 |
ND - Pass |
|
PCP |
BS EN 14041:2018 |
ND - Pass |
|
Migration of Certain Elements |
EN 71 – 3:2013 |
ND - Pass |
Packing Infornation：
|
Packing Information(4.0mm) |
|
|
Pcs/ctn |
12 |
|
Weight(KG)/ctn |
22 |
|
Ctns/pallet |
60 |
|
Plt/20’FCL |
18 |
|
Sqm/20’FCL |
3000 |
|
Weight(KG)/G.W |
24500 |
