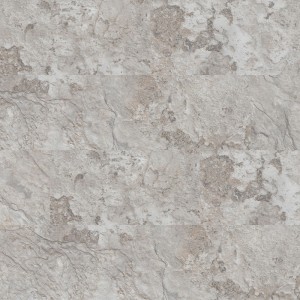

Stone pattern SPC RIGID CORE PLANK
Description:
Item：TYM 211
Thickness: 4.0mm~8.0mm
Wear Layer: 0.2mm~0.7mm
Underlay（Optional）：EVA/ IXPE, 1.0mm~2.0mm
Size：12” X 24”/ 12” X 12”/ Customization
Stone Rigid core SPC plank flooring features ultra stability, high impact durability and award-winning design for luxury flooring. TopJoy Rigid Core SPC plank flooring is 100% waterproof, pet-friendly, and anti-termite. The SPC flooring can be used immediately after installation. And SPC rigid core plank is easy to disassemble and reuse.
Product Detail：
TopJoy stone pattern SPC rigid core plank is considered the new generation of flooring covering.
SPC rigid core plank flooring comes with the Unilin company lock. And we use German high-speed cutting equipment, high-precision cutting technology, perfect right angle cutting. We have a smooth and seamless surface.
Protect the floor in case of accidental water seepage. It can be easily installed on a different type of flooring base, either concrete, ceramic or existing flooring.
TopJoy accepts OEM and customizes the design. There are thousands of patterns for your choice. SPC Flooring length, width, and thickness can be customized according to your requirement. The general thickness is 4mm-8mm. And the IXPE/EVA underlay to make the rigid core flooring better sound adsorption and excellent underfoot feeling. The signature rigid core of SPC is virtually indestructible, making it an ideal choice for high-traffic and commercial environments.
|
Specification |
|
|
Surface Texture |
Wood Texture |
|
Overall Thickness |
4mm |
|
Underlay（Optional） |
IXPE/EVA(1mm/1.5mm) |
|
Wear Layer |
0.2mm. (8 Mil.) |
|
Width |
12” (305mm.) |
|
Length |
24” (610mm.) |
|
Finish |
UV Coating |
|
Locking System |
|
|
Application |
Commercial & Residential |
Technical Data：
 SPC RIGID-CORE PLANK TECHNICAL DATA |
||
|
Technical Information |
Test Method |
Results |
|
Dimensional |
EN427 & |
Pass |
|
Thickness in total |
EN428 & |
Pass |
|
Thickness of wear layers |
EN429 & |
Pass |
|
Dimensional Stability |
IOS 23999:2018 & ASTM F2199-18 |
Manufacturing Direction ≤0.02% (82oC @ 6hrs) |
|
Across Manufacture Direction ≤0.03% (82oC @ 6hrs) |
||
|
Curling (mm) |
IOS 23999:2018 & ASTM F2199-18 |
Value 0.16mm(82oC @ 6hrs) |
|
Peel Strength (N/25mm) |
ASTM D903-98(2017) |
Manufacturing Direction 62 (Average) |
|
Across Manufacture Direction 63 (Average) |
||
|
Static Load |
ASTM F970-17 |
Residual Indentation:0.01mm |
|
Residual Indentation |
ASTM F1914-17 |
Pass |
|
Scratch Resistance |
ISO 1518-1:2011 |
No penetrated the coating at the load of 20N |
|
Locking Strength(kN/m) |
ISO 24334:2014 |
Manufacturing Direction 4.9 kN/m |
|
Across Manufacture Direction 3.1 kN/m |
||
|
Colour Fastness to Light |
ISO 4892-3:2016 Cycle 1 & ISO105–A05:1993/Cor.2:2005& ASTM D2244-16 |
≥ 6 |
|
Reaction to fire |
BS EN14041:2018 Clause 4.1 & EN 13501-1:2018 |
Bfl-S1 |
|
ASTM E648-17a |
Class 1 |
|
|
ASTM E 84-18b |
Class A |
|
|
VOC Emissions |
BS EN 14041:2018 |
ND – Pass |
|
ROHS/Heavy Metal |
EN 71-3:2013+A3:2018 |
ND – Pass |
|
Reach |
No 1907/2006 REACH |
ND – Pass |
|
Formaldehyde emission |
BS EN14041:2018 |
Class: E 1 |
|
Phthalate Test |
BS EN 14041:2018 |
ND – Pass |
|
PCP |
BS EN 14041:2018 |
ND – Pass |
|
Migration of Certain Elements |
EN 71 – 3:2013 |
ND – Pass |
Packing Infornation：
|
Packing Information(4.0mm) |
|
|
Pcs/ctn |
12 |
|
Weight(KG)/ctn |
22 |
|
Ctns/pallet |
60 |
|
Plt/20’FCL |
18 |
|
Sqm/20’FCL |
3000 |
|
Weight(KG)/G.W |
24500 |
