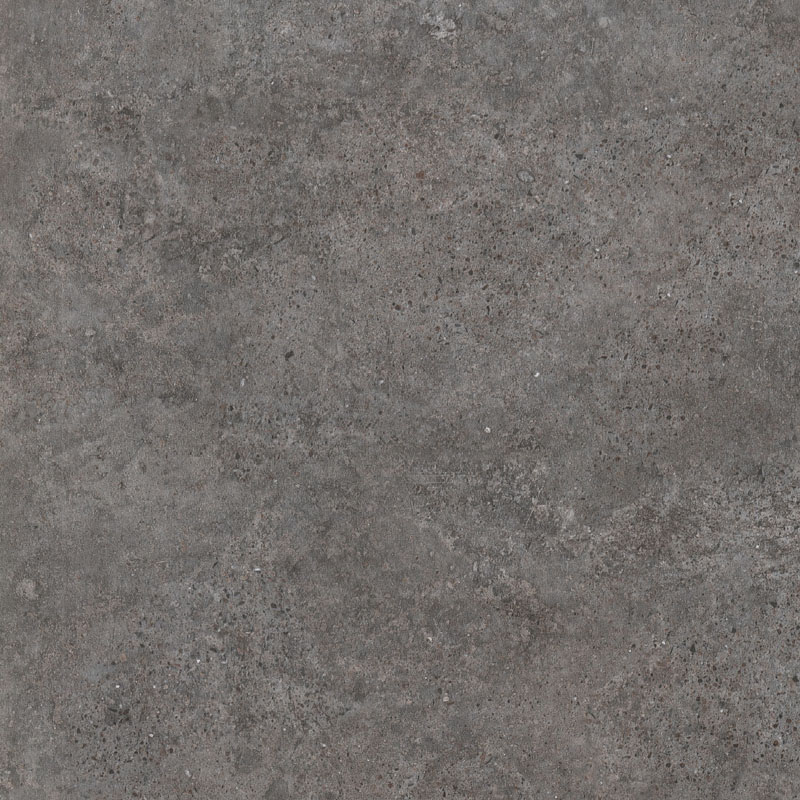

The Top-end Rigid Core Vinyl Flooring
Description:
Item：TYM208
Thickness: 4.0mm~8.0mm
Wear Layer: 0.2mm~0.7mm
Underlay（Optional）：EVA/ IXPE, 1.0mm~2.0mm
Size：12” X 24”/ 12” X 12”/ Customization
The top-end rigid core vinyl flooring mimics natural materials better than ever before. The looks are incredibly realistic and beautiful. Compared with concrete, it doesn’t need to acclimate before installation and wait hours or days for concrete to dry.
Product Detail：
What makes SPC flooring different is its solid core that gives the floor superior indentation resistance. It can withstand wide temperature changes so you can leave your house, shutting off the heat or air conditioner. It won’t swell in a humid environment so it’s widely used in wet rooms like bathrooms, basements and laundry rooms. It’s friendly to families with kids and pets thanks to its durability, scratch resistance, and stain resistance. In addition, rigid core contributes to indoor air quality as it’s low VOC, phthalate-free and formaldehyde-free. With wide selections of authentic wood grain and stone looks, SPC is a perfect substitute for traditional hardwood, laminate flooring or stone, concrete material. SPC vinyl plank is the ideal choice for tight-budgeted homeowners, small business owners and of course for big shopping malls. We also accept OEM, do feel free to send us samples for specified design!
|
Specification |
|
|
Surface Texture |
Wood Texture |
|
Overall Thickness |
4mm |
|
Underlay（Optional） |
IXPE/EVA(1mm/1.5mm) |
|
Wear Layer |
0.2mm. (8 Mil.) |
|
Width |
12” (305mm.) |
|
Length |
24” (610mm.) |
|
Finish |
UV Coating |
|
Locking System |
|
|
Application |
Commercial & Residential |
Technical Data：
 SPC RIGID-CORE PLANK TECHNICAL DATA |
||
|
Technical Information |
Test Method |
Results |
|
Dimensional |
EN427 & |
Pass |
|
Thickness in total |
EN428 & |
Pass |
|
Thickness of wear layers |
EN429 & |
Pass |
|
Dimensional Stability |
IOS 23999:2018 & ASTM F2199-18 |
Manufacturing Direction ≤0.02% (82oC @ 6hrs) |
|
Across Manufacture Direction ≤0.03% (82oC @ 6hrs) |
||
|
Curling (mm) |
IOS 23999:2018 & ASTM F2199-18 |
Value 0.16mm(82oC @ 6hrs) |
|
Peel Strength (N/25mm) |
ASTM D903-98(2017) |
Manufacturing Direction 62 (Average) |
|
Across Manufacture Direction 63 (Average) |
||
|
Static Load |
ASTM F970-17 |
Residual Indentation:0.01mm |
|
Residual Indentation |
ASTM F1914-17 |
Pass |
|
Scratch Resistance |
ISO 1518-1:2011 |
No penetrated the coating at the load of 20N |
|
Locking Strength(kN/m) |
ISO 24334:2014 |
Manufacturing Direction 4.9 kN/m |
|
Across Manufacture Direction 3.1 kN/m |
||
|
Colour Fastness to Light |
ISO 4892-3:2016 Cycle 1 & ISO105–A05:1993/Cor.2:2005& ASTM D2244-16 |
≥ 6 |
|
Reaction to fire |
BS EN14041:2018 Clause 4.1 & EN 13501-1:2018 |
Bfl-S1 |
|
ASTM E648-17a |
Class 1 |
|
|
ASTM E 84-18b |
Class A |
|
|
VOC Emissions |
BS EN 14041:2018 |
ND – Pass |
|
ROHS/Heavy Metal |
EN 71-3:2013+A3:2018 |
ND – Pass |
|
Reach |
No 1907/2006 REACH |
ND – Pass |
|
Formaldehyde emission |
BS EN14041:2018 |
Class: E 1 |
|
Phthalate Test |
BS EN 14041:2018 |
ND – Pass |
|
PCP |
BS EN 14041:2018 |
ND – Pass |
|
Migration of Certain Elements |
EN 71 – 3:2013 |
ND – Pass |
Packing Infornation：
|
Packing Information(4.0mm) |
|
|
Pcs/ctn |
12 |
|
Weight(KG)/ctn |
22 |
|
Ctns/pallet |
60 |
|
Plt/20’FCL |
18 |
|
Sqm/20’FCL |
3000 |
|
Weight(KG)/G.W |
24500 |
